ITEM DESCRIPTION

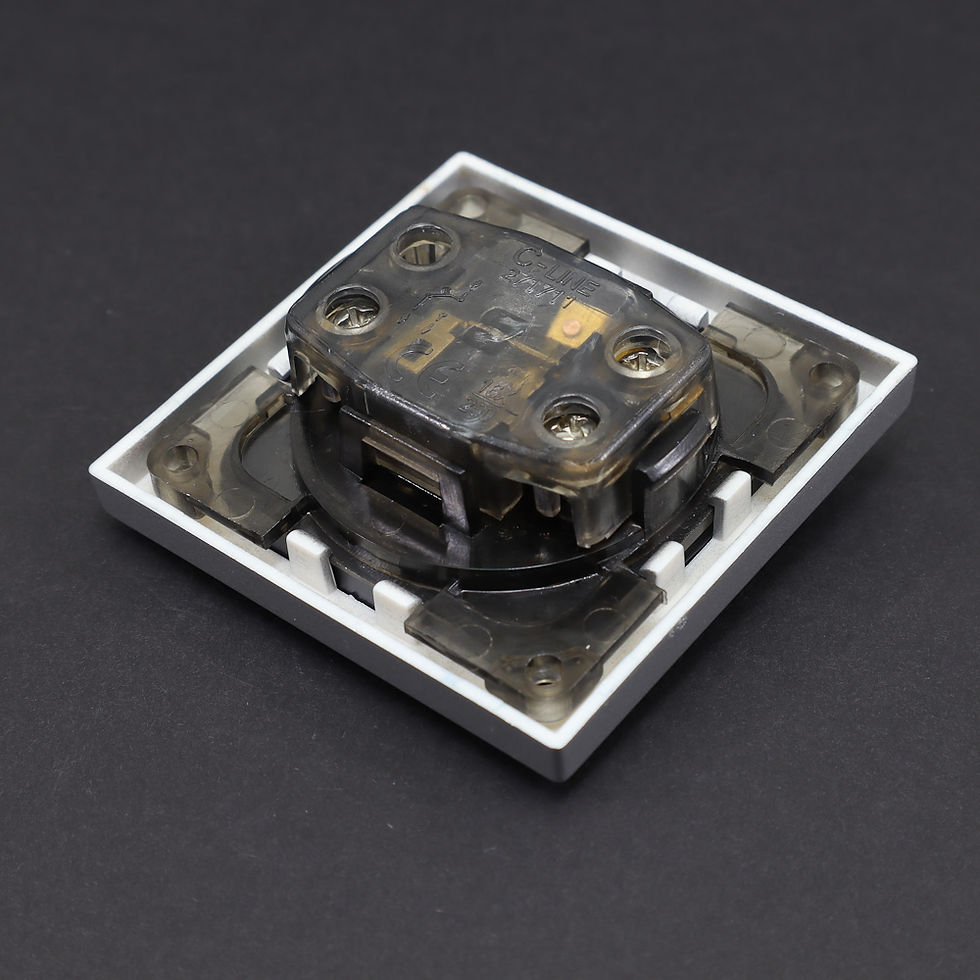

This unit features a silver C-Line single frame and 1x single 16amp rocker switch

This particular frame model is known as the 'CSM Range - Silver'

This is rated at 16amps @ 250v - This is suitable for mains applications and low voltage applications

The switch is a single pole, two position SPDT switch which can be wired as On/Off or On/On. The left terminal is common and the right terminals are circuits 1 and 2. Leave one circuit disconnected if using as an On/Off switch

This can also be used as a change over switch, to switch between accessory options, or to operate lights at different ends of a room. In this instance one switch can be partnered with another switch which serves as the master On/Off switch, where the master feeds power to the second switch and the second switch is used to alternate between the two different positions of the switch

For use in campers and houseboats

--------------------
PACKAGE INCLUDES –
- 1x C-Line grey 16amp rocker switch (screw to the wall)
- 1x C-Line outer frame (clips to the switch)
--------------------
ADDITIONAL NOTES -
- These pieces all fit together so that the finished assemblage is screwed and clipped to the wall
- Once all items are in place there are no visible screws creating a professional clean finish
- Made from hard wearing plastic
- The frame measures 60mm by 60mm
- 30mm recess is required
